Abstract

The rapid scaling of global semiconductor manufacturing has made device characterization an essential pillar of modern supply chains. Among the most ubiquitous mixed-signal building blocks, the analog-to-digital converter (ADC) demands rigorous performance validation to ensure the reliability of the systems that use them.

This thesis presents the design, implementation, and characterization of a 4 MS/s 8-bit Flash ADC fabricated in 180 nm CMOS process for use as a readout converter in a CMOS image sensor. Two identical ADC instances are implemented to serve even and odd pixel columns respectively, providing the imager with a frame rate of approximately 40 FPS. The architecture follows the standard Flash topology: a sample and hold circuit with a slew rate of about 3.6V/μs, a comparator with a pre-charged PMOS and latch structure, and typical one-hot ROM encoder.

Device characterization strictly follows the IEEE 1241 standard for ADC testing, utilizing standard laboratory equipment, Verilog control logic on a custom PCB, and a Python GUI for automatic data acquisition and process- ing. Measured static performance yielded a peak DNL of +3.15/-1.0 LSB and INL of +2.68 / -3.19 LSB. Dynamic characterization at 4 MS/s produced an SINAD of 31.52 dB, THD of -32.9 dBFS, and an ENOB of 4.94 bits. Beyond ADC characterization, this work establishes a reusable test framework and documented procedure to support future integrated circuit validation efforts.

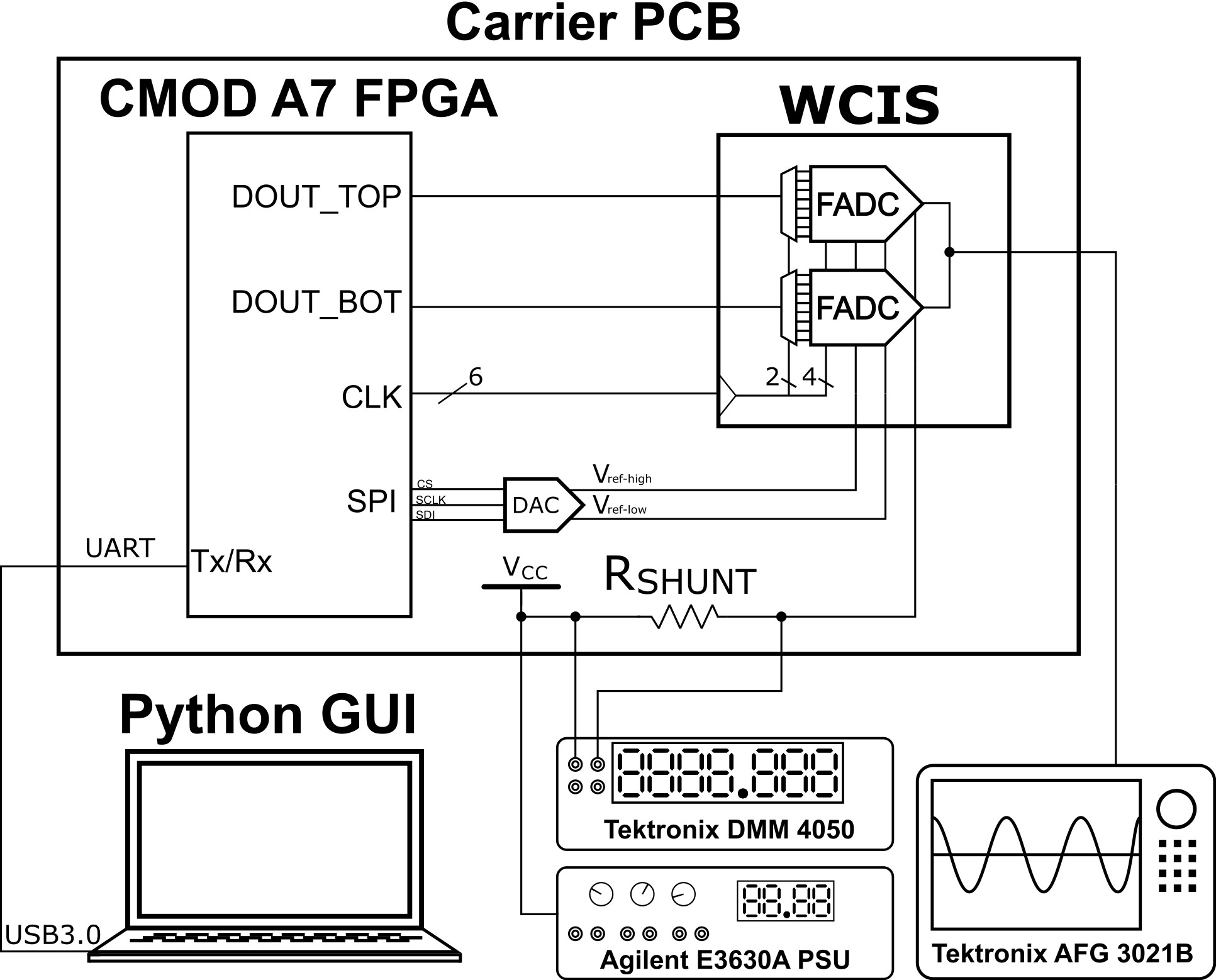

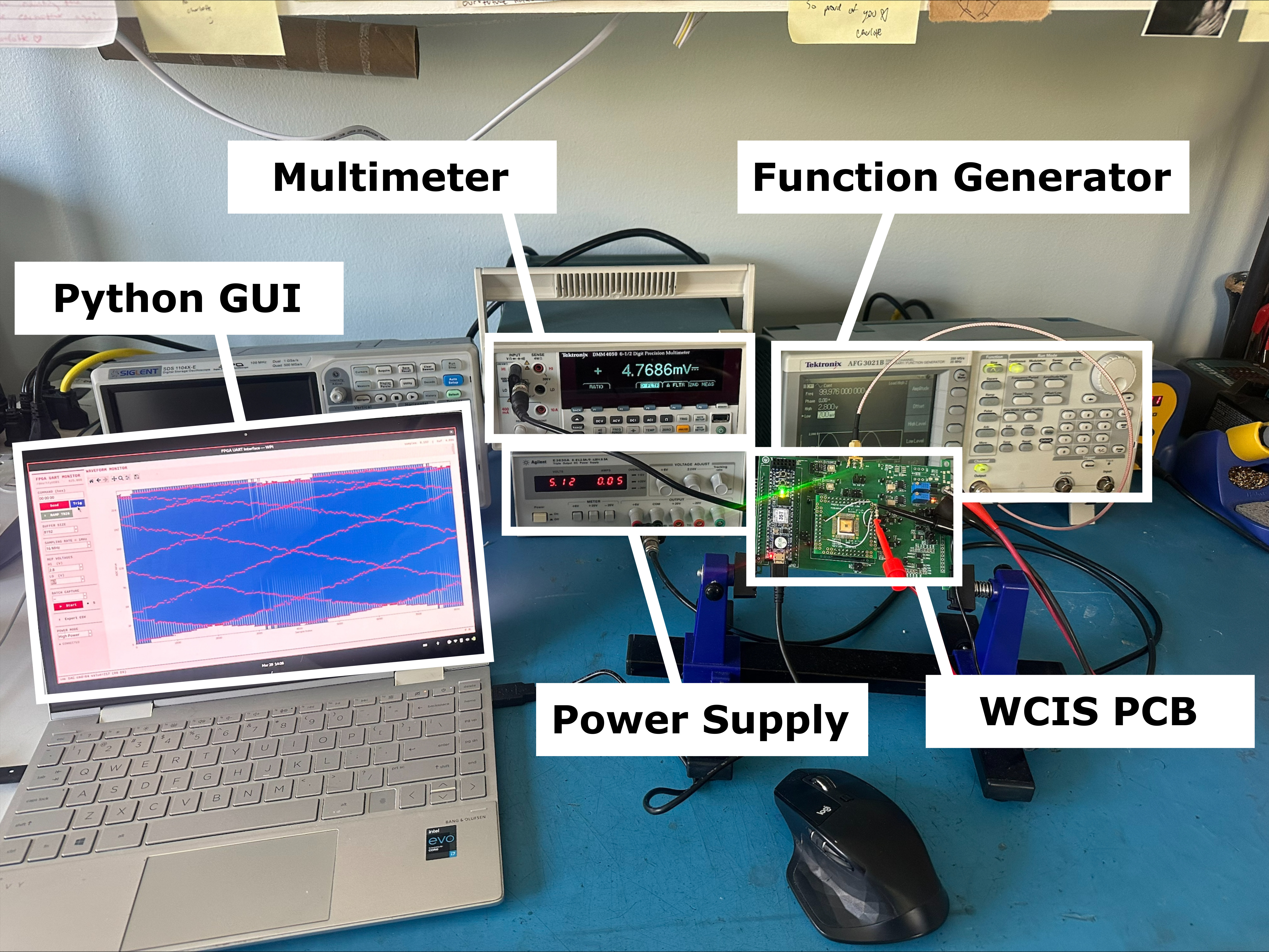

Test Setup

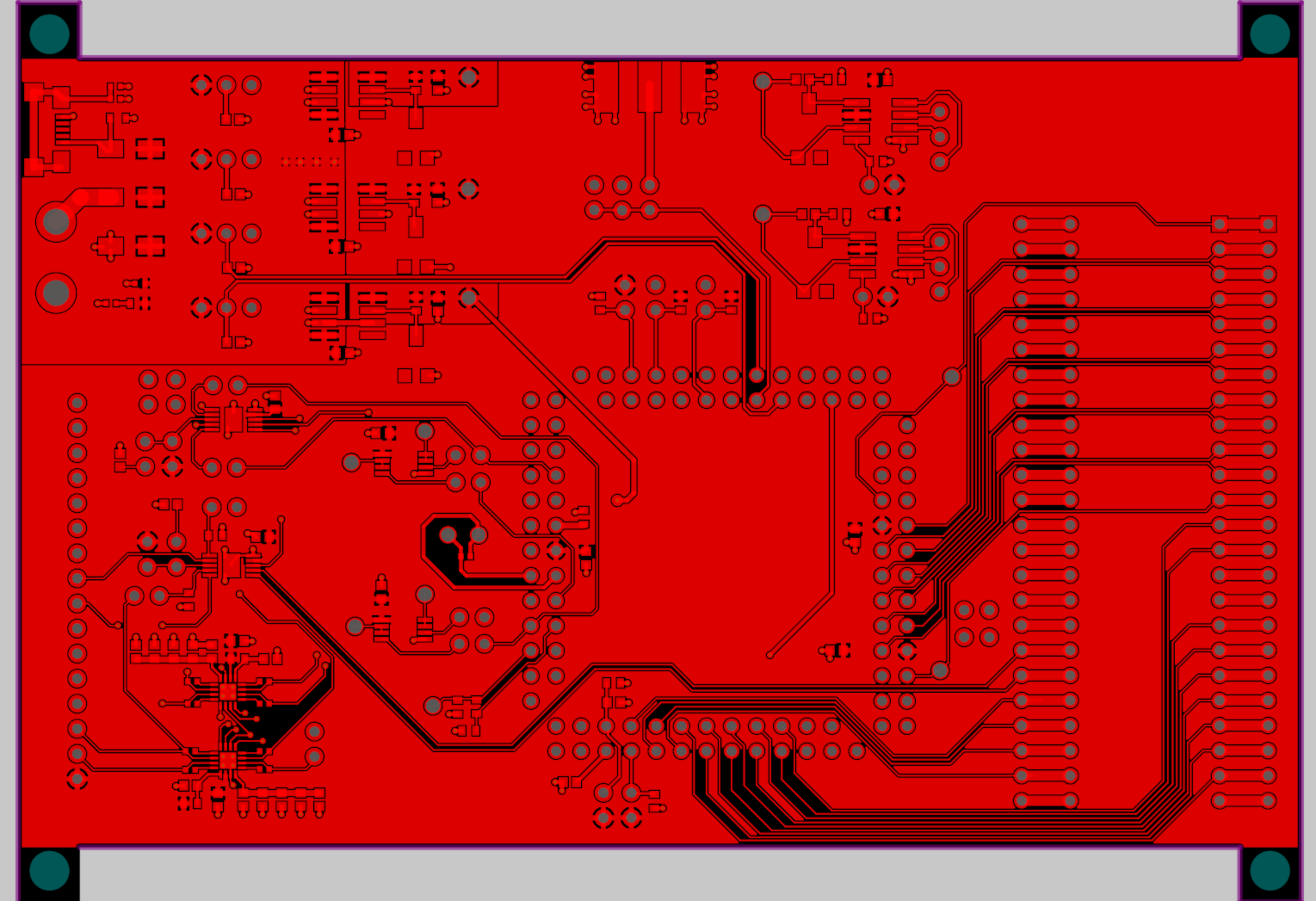

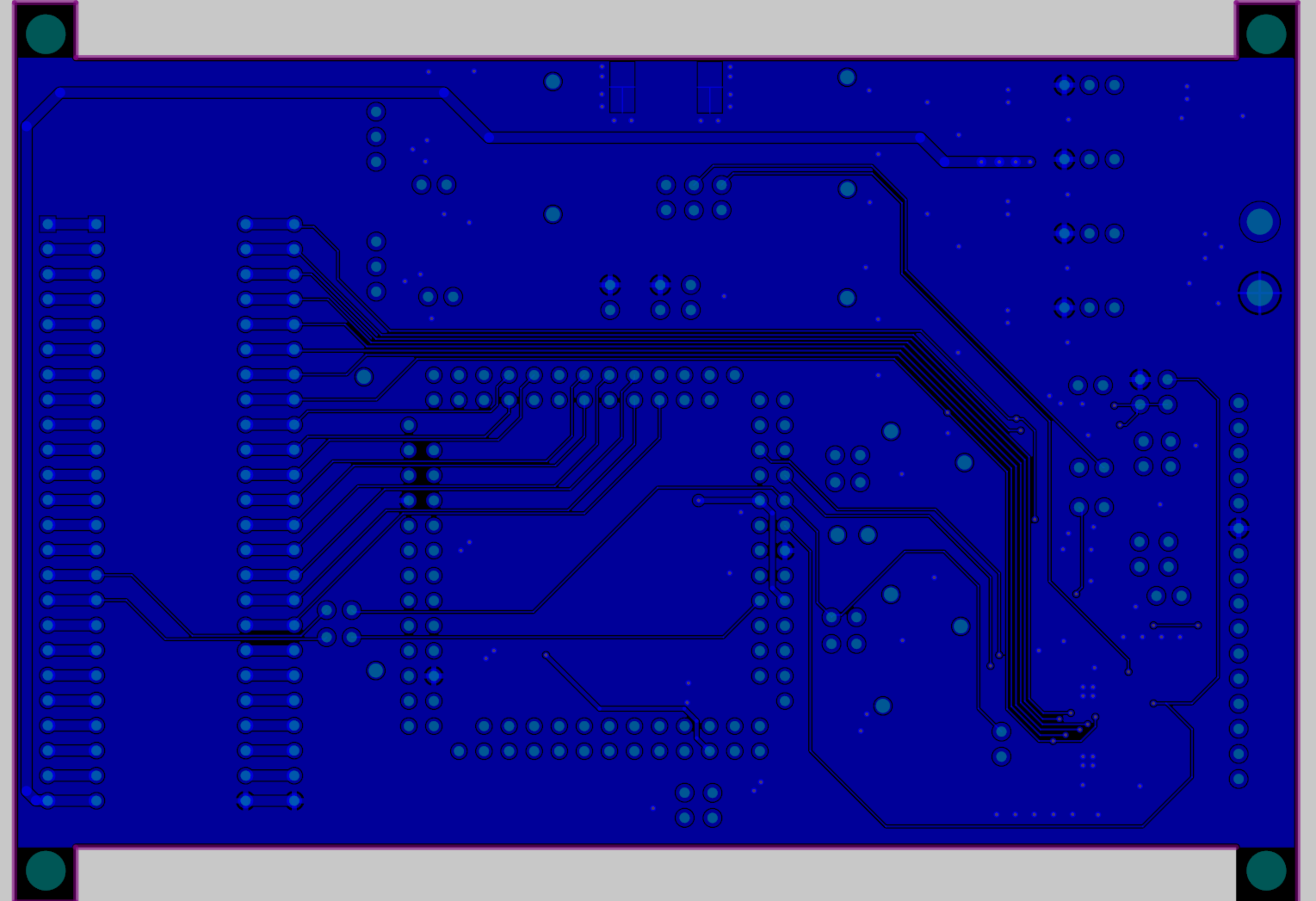

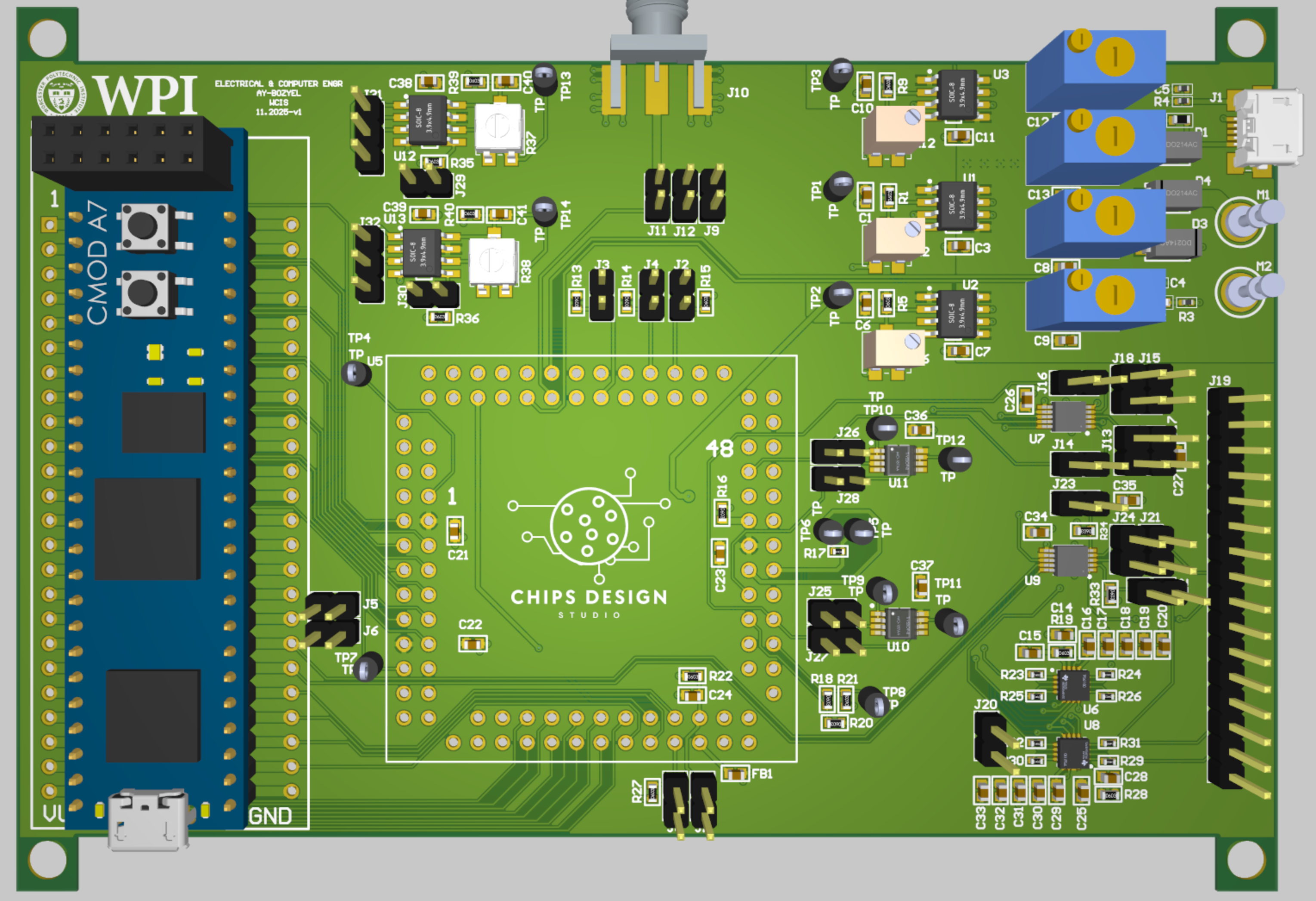

Carrier Board

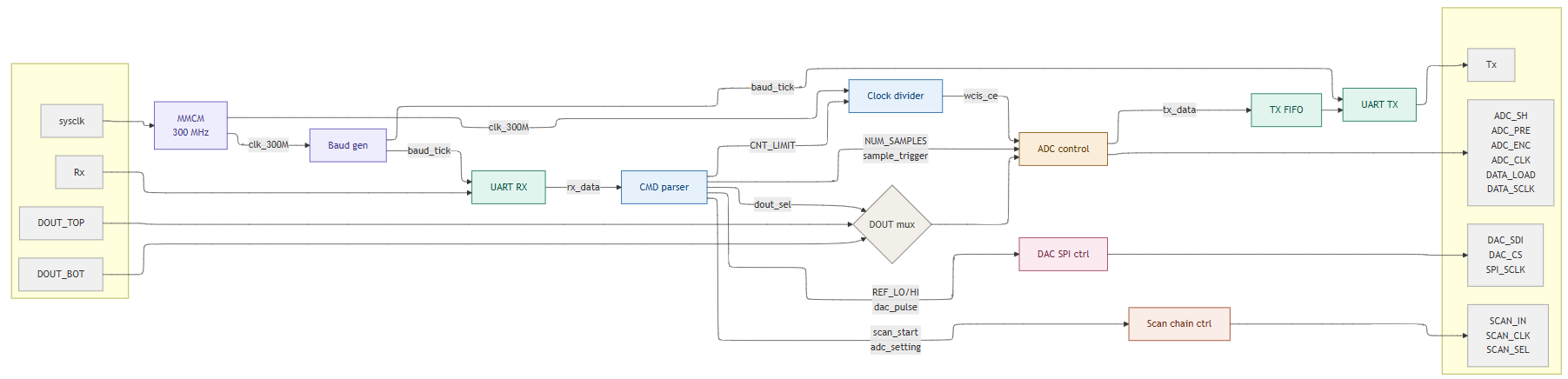

FPGA

View Verilog Code on GitHub
